Structural steel is no longer “just another material” — it’s a time-saving, precision-driven, waste-reducing, and highly economical way to build today. From small industrial sheds to multi-storey warehouses and fast-track residential projects, steel lets you compress schedules, reduce onsite labour, and deliver reliable, quality structures faster than conventional RCC.
This long, practical guide explains everything a builder, architect, or homeowner needs to know: types of structural steel, section choices, fabrication & erection workflows, cost drivers and savings, quality checks, paint & corrosion protection, standards, and real examples — plus how you can source Tata Structura and other steels from Pahari Home Solutions / Pahari Traders.
Summary of the most important practical benefits you’ll read about below:
• Faster schedules (prefab steel modules and bolted assembly vs cast-in-place concrete).
• Lower onsite labour and shorter critical path (less curing time, fewer trades).
• Predictable cost and better quality control (factory fabrication).
Why choose structural steel? Quick orientation
Structural steel offers a high strength-to-weight ratio, excellent modularity, and is ideal for off-site prefabrication. When components are fabricated in controlled factory conditions they have exact tolerances and can be delivered “ready to bolt” — dramatically cutting field labour, reducing rework and weather delays, and shortening the critical path of construction schedules. Multiple industry studies and manufacturer case studies report double-digit time savings when steel or steel-modular systems replace cast-in-place concrete or traditional masonry.
Types of structural steel and how they’re used (complete list)
| Category | Typical Sections | Main Uses |
|---|---|---|
| Rolled Hot-rolled Sections | I-beams (UB/UC), Channels, Tees, Angles | Primary beams, columns, bracing, frames |
| Hollow Structural Sections (HSS) | Square, Rectangular, Circular Hollow Sections (SHS/RHS/CHS) — e.g., Tata Structura SHS/RHS | Columns, façades, architectural exposed members, trusses |
| Cold-Formed Steel (CFS) | Light gauge sections (C/Z purlins, studs) | Lightweight roofs, partitions, light framing |
| Plates & Flats | Plates (6–200mm), Flats, Strips | Base plates, gussets, welded connectors |
| Steel Pipes & Tubes | Structural tubes, scaffolding tubes, pipe piles | Columns, piles, tubular trusses, scaffolding |
| Reinforcing Steel (TMT) | Deformed bars (Fe500/Fe550) — not structural sections but key reinforcement | Reinforcement in composite/RC hybrid systems |

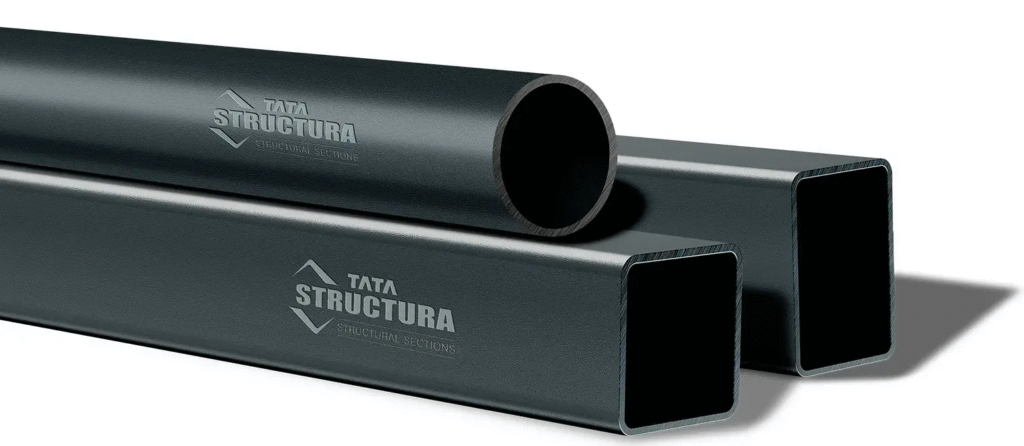

Tata Structura is a branded range focused on hollow sections and structural tubes (SHS/RHS/CHS) ideal for frames, façades and modular structures. See product details from Tata Structura.
How steel speeds up construction — step-by-step mechanics
- Design for prefabrication — Engineers design modules so pieces can be shop-fabricated and trial-assembled in factory jigs. This avoids on-site measuring errors and rework.
- Simultaneous activities — While foundations and utilities are prepared on site, steel components are fabricated off-site; this parallel workflow compresses schedule.
- Bolted assembly on site — Most connections are bolted (sometimes welded minorly on site), which is faster than forming, placing reinforcement and curing concrete.
- No curing delays — Eliminates 7–28 day concrete curing waits that are often on the critical path for RCC structures.
- Weather-independent progress — Factory work isn’t interrupted by rain; on-site work is reduced to assembly and finishing.
- Higher productivity per worker — Fewer labourers needed for assembly vs large formwork/placement crews.
Industry data: studies comparing RCC vs steel show steel can reduce construction time by roughly 18–40% depending on system and modularization level — composite and fully modular systems show larger savings. One time/cost comparison reported roughly 18.66% time savings for steel vs RCC, while modular prefabrication case studies show up to 30–40% shorter schedules.
Cost savings explained (beyond the sticker price)
Although steel raw material cost per tonne can be higher than embodied concrete cost per cubic metre, whole-project economics favor steel when you account for:
• Reduced onsite labour and supervision costs
• Shorter project financing period (less interest & overhead)
• Less temporary works (formwork hire & labor)
• Reduced waste and material theft risk
• Faster revenue generation (rent/sale earlier)
• Lower maintenance for exposed weatherproofed steel vs poor quality masonry
A published comparative analysis concluded net time and cost benefits when considering indirect savings (project overheads), especially for multi-storey and industrial builds where speed, repeatability and weight savings are valuable.
When structural steel is the best choice (use cases)
• Fast-track commercial buildings & warehouses
• Long-span structures (factories, auditoriums) where open column spacing is required
• Multi-storey framed buildings (composite steel-concrete floors)
• Modular hotels, hostels, student housing — repeatable modules accelerate delivery
• Temporary structures and rapid-deployment industrial sheds
• Retrofit and expansion where minimal added dead load desired
How to choose the correct section — table of common sections & typical properties
Below is a short reference table (representative sizes; always confirm with manufacturer tables and structural engineer) :
| Section Type | Example Size (mm) | Approx Weight (kg/m) | Typical Use |
|---|---|---|---|
| Universal Beam (UB) | 203×133×25 | 25 kg/m | Primary beams |
| Universal Column (UC) | 254×254×73 | 73 kg/m | Columns |
| C-Channel | 150×75×13 | 13 kg/m | Secondary beams, purlins |
| Angle 75×75×8 | 75×75×8 | 6 kg/m | Bracing, connections |
| RHS 100×50×3 | 100×50×3 | ~6.7 kg/m | Frames, columns |
| SHS 100×100×4 | 100×100×4 | ~12.2 kg/m | Architectural columns |
| Plate 10mm | 100mm wide | 7.85 kg/m (per 1m length × thickness) | Base plates, splice plates |
(Use the exact manufacturer / BIS tables for precise weights. Industry charts and supplier spec sheets such as tubetrading and Tata Structura give full ranges and exact kg/m for each size.)
Fabrication & erection workflow — A practical A→Z
- Design & Shop Drawings — 3D models produce full material lists (BOM), connection details and bolt schedules.
- Material procurement — Hollow sections, plates, bolts, primers purchased (Tata Structura often specified for hollow tubes).
- Cutting & preparation — CNC plasma/laser cutting and CNC drilling ensure tolerance and accuracy.
- Shop welding & assembly — Welded assemblies, tack-fit subassemblies & trial-assembly ensure flatness and bolt hole alignment.
- Surface treatment & primer — Shot blasting and shop primer (zinc rich / epoxy) applied for corrosion protection.
- Packaging & delivery — Flat-packed modules and labeled bundles sent to site.
- Erection — Cranes bolt pieces together; bolted splice connections speed erection.
- Site welding & finishing — Minimal site welding required. Final coatings & touchups complete the work.
The fewer operations at site (compared to formwork, shuttering, reinforcement & concrete), the faster and cleaner the construction process.
Connections : Bolts vs welded vs hybrid — what to specify
• High strength friction grip (HSFG) bolts for shear critical bolted joints.
• Bolted splice connections allow quick alignment and future dismantling.
• Site welding should be minimised — prefabrication reduces poor-quality welds and QA issues.
• Base plates & anchor bolts must be engineered for transfer of loads to foundation.
Correct connection detailing is critical to realize the time benefits of steel — poor detailing negates prefab advantages.
Corrosion protection, coatings and maintenance
Structural steel must be protected against rust. Common strategies:
• Hot dip galvanizing — excellent long-term corrosion resistance for exposed members.
• Shop applied epoxy zinc primer + finishing coats — used where mill galvanization not feasible.
• Fire protection — intumescent coatings or fireproofing boards for required fire ratings.
• Periodic maintenance — inspect and touch up coatings every 5–10 years depending on environment.
Tata Structura hollow sections are commonly ordered in black (for welded framing) and then shop primed; specify galvanizing where exposure dictates.
Design standards and codes you must follow (India & international)
• BIS: IS 2062 — Grade specification for hot-rolled structural steel.
• IS 875 — Wind loads, and other relevant codes for loads.
• IS 456 / IS 800 (for combined concrete/steel design)
• Manufacturer datasheets & connection design by a chartered structural engineer.
Always use certified materials and request mill/test certificates for yield strength, chemical composition and mechanical properties.
Sustainability & circularity
Steel is highly recyclable — structures designed for future disassembly can reclaim 90%+ of steel. Prefab steel construction also reduces waste generation on site by larger margins than cast-in-place approaches, reducing embodied carbon in project lifecycle.
Realistic project economics (example scenarios)
Below are simplified example comparisons — these are illustrative and depend on project specifics.
| Project Type | RCC Cast-in-Place Duration | Steel Frame Duration | Time Saved | Typical Net Outcome |
|---|---|---|---|---|
| Single-storey warehouse (5,000 m²) | 24 weeks | 12–16 weeks | 33–50% faster | Lower overall site overheads; faster occupancy |
| 6-storey modular residential (100 units) | 18–24 months | 12–16 months | 25–40% faster | Faster revenue; less temporary works cost |
| Industrial shed (span 30m) | 16 weeks | 8–12 weeks | 25–50% faster | Lower crane & formwork costs |
Industry literature and time-cost comparisons report similar ranges — steel systems save time and frequently reduce indirect costs enough to offset raw material cost differences.
Supply & availability — Tata Structura at Pahari Home Solutions
Pahari Home Solutions / Pahari Traders supplies a full range of construction steels and is an authorised TMT & structural supplier in Medinipur. Tata Structura hollow sections (SHS/RHS), which are widely used in modern structural and architectural applications, are available via authorised dealers and distributor networks. You can order Tata Structura hollow sections and have them dispatched from the Pahari warehouse / TMT counter for local delivery, loading and site dispatch. For availability and lead times call our supply team.
Contact for orders and enquiries :
Pahari Home Solutions Pvt. Ltd. — TMT / Structura counter & warehouse
Phone / WhatsApp: +91 7584055356
Practical QA checklist for buyers & site teams
Before placing order or commissioning erection:
- Mill/Test certificates for steel grade (IS 2062 / specified grade).
- Shop drawings and trial assembly records.
- Bolt schedule and torque values.
- Primer/coating specification and shop-applied thickness.
- Anchor bolt template verification on site.
- Lifting & handling plan for bundles (to avoid damage).
- Inspection of bolt holes, paint damage & welds on arrival.
- NDT or weld QA records where applicable.
Common myths & clarifications
Myth : “Steel is always more expensive than RCC.”
Fact : Upfront raw material may be higher, but total project cost — including time, labour, formwork, P&M hire, interest and early revenue — often favours steel, especially for projects where time is critical.
Myth : “Steel corrodes too fast for Indian climate.”
Fact : Proper coatings (galvanizing, epoxy primer + finish) and maintenance schedules keep steels performing for decades even in harsh climates.
Frequently Asked Questions and Quick Answers
- What is structural steel and how is it different from reinforcement steel?
Structural steel refers to hot-rolled sections, hollow tubes, plates and profiles used as primary load-carrying members (I-beams, columns, hollow sections). TMT bars (reinforcement) are deformed bars used inside concrete. Both are essential but serve different purposes. - What types of structural steel sections are used for frames?
Universal Beams (UB/HE), Universal Columns (UC), Channels, RHS/SHS hollow sections and plates depending on design. - What is Tata Structura and why use it?
Tata Structura is Tata Steel’s branded hollow section/tube range built to high quality standards — used for frames, façades and modular systems. It’s known for consistent dimensions and certified mechanical properties. - Does steel construction reduce project time? By how much?
Yes — depending on prefab level: typical savings range 18–40% compared to cast-in-place RCC, larger for fully modular projects. - How do I protect structural steel from corrosion?
Options: hot-dip galvanizing, zinc-rich epoxy primers, inorganic zinc coatings, and regular maintenance; selection depends on exposure class. - Are steel buildings earthquake-resistant?
Yes — steel’s ductility and predictable behavior under dynamic loads make it excellent for seismic regions when properly designed. - Can steel frames be fire protected?
Yes — using intumescent coatings or cementitious fireproofing boards to achieve required fire ratings. - Is fabrication quality important?
Absolutely — good shop fabrication (accurate cutting, welding, trial assembly and QA) is the foundation of fast, reliable erection. - How is a bolted connection designed?
By calculating shear and tensile forces and selecting appropriate bolt grade (often HSFG) and splice design per code. - How soon after delivery can steel be erected?
Immediately — as long as site foundations and anchor bolts are ready; no curing delays. - Do steel structures need larger foundations?
Generally lighter dead loads mean foundations can be smaller, but this depends on design loads and soil conditions. - What is the lead time for structural steel supplies?
Varies by scope — common components (standard sizes) can be 2–6 weeks; bespoke modular systems longer. Ask Pahari Home Solutions for current lead times. - Can I reuse steel members in future expansions?
Yes — bolted steel connections allow for disassembly and reuse in many cases. - How does steel perform in a coastal environment?
With proper corrosion protection (galvanizing + maintenance), steel performs well even near coasts. - Is cold-formed light gauge steel suitable for residential houses?
Yes — for partitions, purlins, and lightweight roofs; for primary frames, hot-rolled sections or hollow sections are preferred. - Which is better for speed: precast concrete or steel?
Both speed up work — precast panels can be very fast. Prefab steel modules are also rapid and often more flexible for long spans and reconfiguration. Comparative outcomes depend on project specifics. - What certifications should I ask for on delivery?
Mill test certificates, chemical & mechanical test reports, dimensional certificates and coating thickness reports. - Can Pahari Home Solutions supply Tata Structura for my project?
Yes — Tata Structura hollow sections and other structural steels are available via Pahari Traders / Pahari Home Solutions with warehouse dispatch and local delivery. Call +91 7584055356. - How much does a standard steel frame cost per square metre?
Costs vary widely by design, finish and location. Request a bespoke quote from Pahari Home Solutions — many projects save net cost via schedule reductions. - Who designs steel connections and what documents do I need?
A chartered structural engineer designs connections. Required documents: architectural & structural drawings, load lists, and preferred section schedules.
How Pahari Home Solutions helps you execute steel projects
Pahari Traders / Pahari Home Solutions supplies TMT and structural steel, offers warehouse dispatch, loading support and coordination with fabricators and erectors. You can source Tata Structura hollow sections and other branded steels through our TMT counter and warehouse dispatch channels. For project inquiries, material lists and lead times call our supply desk: +91 7584055356.
Final thought — when speed, predictability and future value matter, choose steel
Structural steel is a strategic choice for builders who value speed, modularity, precision and lifecycle performance. When paired with good design, certified materials such as Tata Structura and disciplined shop fabrication, steel systems reduce onsite uncertainty and accelerate delivery — turning time savings into real financial gains. If your project priority is speed to market, reduced onsite disruption, and long-term adaptability, structural steel deserves top consideration.
